Exteriors, Underwater Luminaires, Underwater Surface Mounted

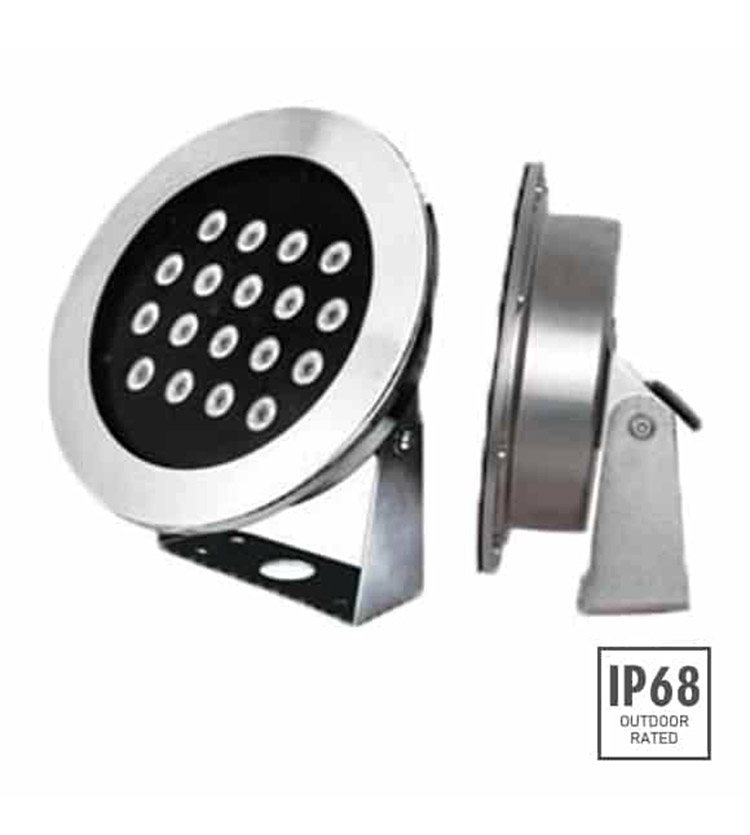

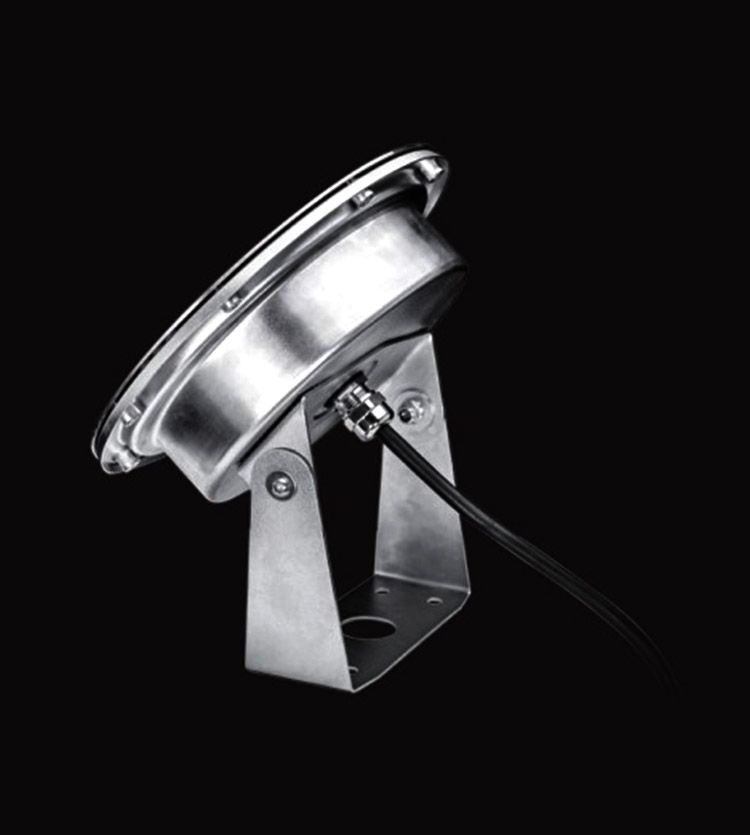

LL 150008
Dimensions
Fixture Dia: 224mm
Length: 57x119mm, Height: 230mm
Material
Hard chromeplated Molding shaped stainless steel SUS 316L#
Wattage
18x2W
Led Brand
OSRAM LED
CRI
85+
Color Temperature Available
2000K / 3000K / 6000K
Driving Current and Voltage
Constant Voltage Input, Constant Current Output
Driver Specifications
24VDC+/-10%
Optics
20°/25°/30°/35°/45°
Led Lumen
1828lm – 2221lm
Accessories available
Tripod-Optional Accessory
Polar Curve
30D, 3000K
Dimming
Non Dim, TRIAC, PWM, 1-10V, DALI
IP Rating
IP68
Certifications Available
CE, RoHS
Lifetime – L70/B10 @25 Degree C
50000hrs
Warning
Must be installed under the water to prevent the light from being burnt off because of over-heating.
