Exteriors, Underwater Luminaires, Underwater Recessed
LL 147011
Dimensions
Fixture Dia: 250mm x Height: 56x79mm
Sleeve Dia: 232mm x Height: 126mm
Material
Molding shaped hard chromeplated stainless steel
SUS 316L
Wattage
18x2W
Led Brand
OSRAM LED
CRI
85+
Color Temperature Available
2000K / 3000K / 6000K
Driving Current and Voltage
Constant Voltage Input, Constant Current Output
Driver Specifications
24VDC+/-10%
Optics
20°/25°/30°/35°/45°
Led Lumen
1828lm – 2221lm

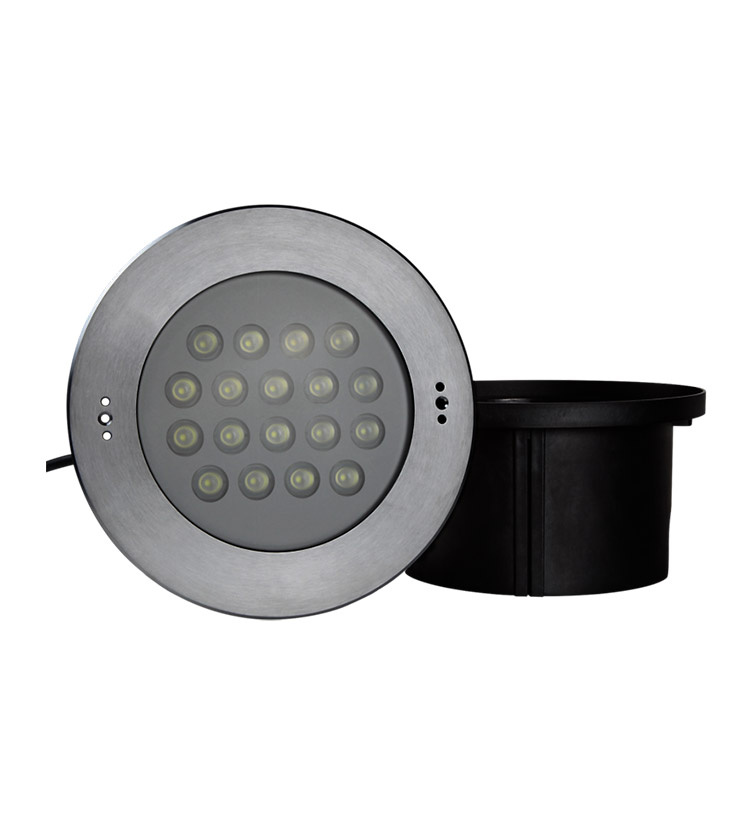

Accessories available
Mounting sleeve
Polar Curve
30D, 3000K
Dimming
Non Dim, TRIAC, PWM, 1-10V, DALI
IP Rating
IP68
Certifications Available
CE, RoHS
Lifetime – L70/B10 @25 Degree C
50000hrs

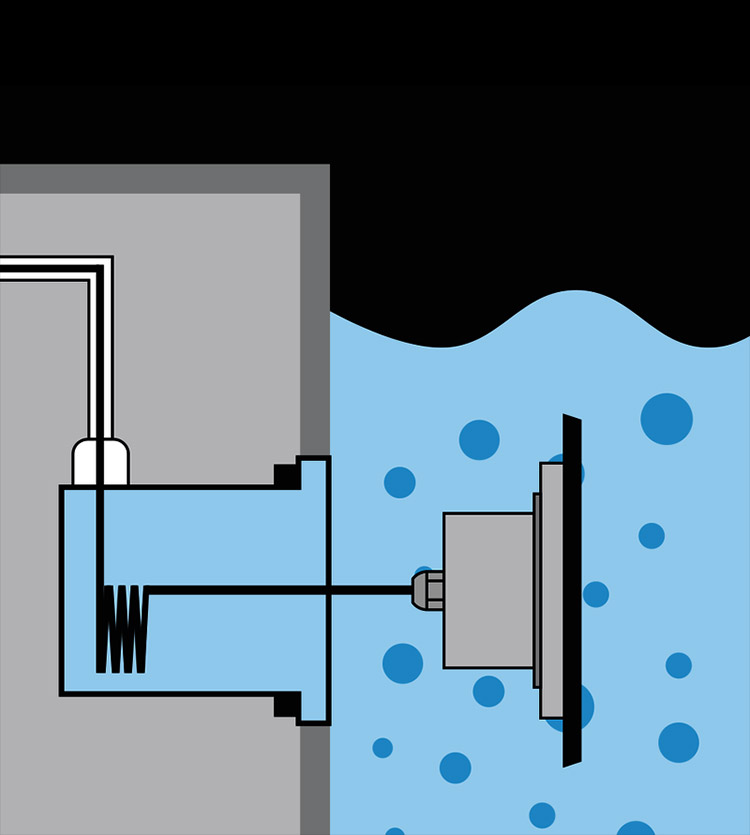

Warning
Must be installed under the water to prevent the light from being burnt off because of over-heating.
