Exteriors, Wall Recessed Luminaires
LL 139020

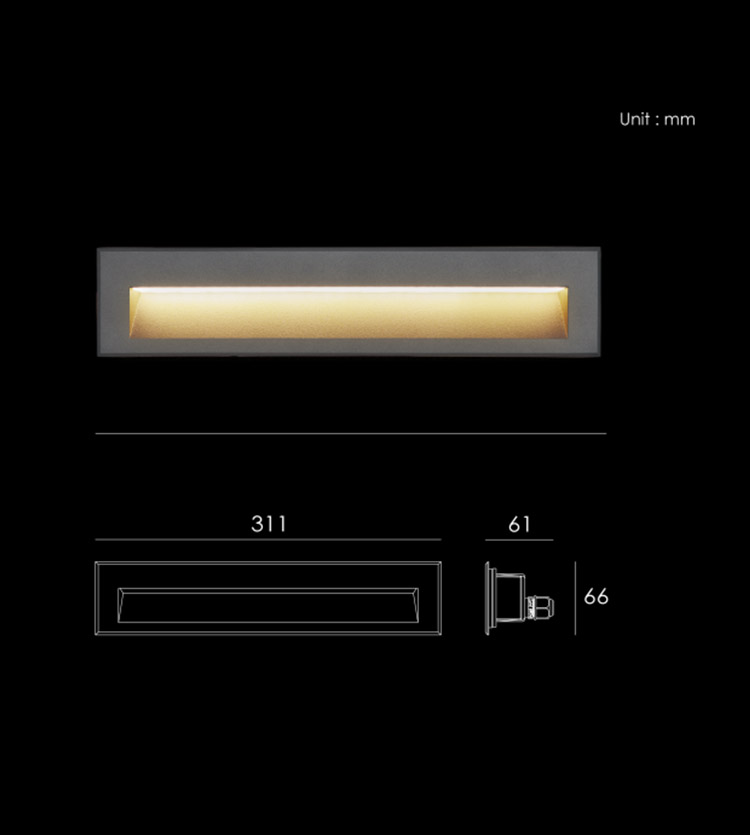

Dimensions
Width: 65mm x Length: 310mm
Sleeve Dimension: 55(52) x 303mm
Material
Die-casting Aluminum
Electrical Class
I
Wattage
9W
Led Brand
SMD3030 type LED
CRI
85+
Color Temperature Available
2000K / 3000K / 6000K
Driving Current and Voltage
AC 120-240 as standard, DC24V as options
Driver Specifications
44mA, Constant current
Optics
120°
Led Lumen
292lm ~330lm
Accessories available
Mounting Sleeve Plastic
Polar Curves
120D, 3000K
Dimming
Non Dim, TRIAC, PWM, 1-10V, DALI
IP Rating
IP65
Certifications Available
CE, RoHS
Lifetime – L70/B10 @25 Degree C
50000hrs
